Quickly And Easily Gain Access to Your Job Site
Mustang Extreme’s engineer-rated, prefabricated temporary bridges are designed to safely support heavy-duty vehicles and equipment over stream beds, waterways, and channel crossings, helping you quickly reach hard-to-access job sites in just a few hours. In addition to providing reliable job site access, our prefabricated bridges can be used to improve load ratings of existing bridges.
Temporary access bridges are an ideal solution because they have little environmental impact and cause minimal disruption to surrounding areas. They can be installed with limited soil backfill, reducing the effects on stream beds and water quality, while helping to prevent soil erosion and sedimentation.
Save on labor and project costs with rapid deploying, temporary bridges:
- Engineer-rated to 45-ton and 94-ton capacities
- Accommodates HL-93 requirements and DOT standards
- Easily skidded into place with an excavator or lifted into place with a crane
- Quick to install and dismantle, causing minimal disruption to work zones and high traffic areas
- Efficient to transport, reducing freight costs
Discuss your specific application with our experienced sales engineers to determine the best option.
Download the Complete List of sizes and specifications
See Our Portable Bridge Options:
Hinged Bridges – Spans of up to 42′
Hybrid Bridges – Spans of up to 62′
Long-Span Bridges – Spans up to 95′
Custom/Skidder Bridges – Spans of up to 17′
Permanent Bridges up to 100′ Lengths
Portable Hinged Bridges: Spans of up to 42'
Portable hinged bridges are designed to minimize freight and installation costs. Installation can typically be completed in about an hour with standard excavating equipment or a crane, which is ideal for areas where site access is difficult or limited.
Portable hinged bridges are available for sale or rent.
Features:
- Hinged lengthwise and folds in half to accommodate legal transport on a single flatbed truck
- Minimizes stream bed disturbance
- Available in 30’, 35’, 40’ and 50’ standard lengths, custom lengths also available
- Engineer-rated to 45-tons
Hybrid Bridges: Spans up to 62’
Our prefabricated, modular bridges are engineered for larger spans of up to 62’. Modular bridges bolt together on site in a matter of hours for fast and easy installations, helping you to start jobs sooner.
Portable hybrid bridges are available for sale or rent.
Features:
- Suitable for permanent installs
- Sections are delivered on two flatbed trucks, or stacked on one truck, depending on size and weight
- Custom sizes can be ordered and fabricated in 4 to 8 weeks
- Easily dismantled, causing minimal disruption to the area
- Engineer-rated to 94-tons
Long-Span Bridges for Spans up to 96'
Our prefabricated, long-span bridges are available in 80 to 100 feet and lengths and spans up to 95 feet.
Constructed in 6 sections, they can be efficiently installed, complete with railings and decking in just 3 days with 4 workers and equipment operators. Engineered to withstand the rigors of installation at multiple sites, they are also suitable for permanent installations.
Features:
- Available in 80′ to 100′ lengths
- Steel frames and additional reinforcing to withstand the rigors of multiple uses
- HL93 loading capacity with no speed restrictions
- Delivers in 6 sections; bolt-spliced at mid-span to facilitate transport
- Includes a strong-post guardrail
- Installs in 2 to 3 days with 4 workers and equipment operators
- Engineer-rated to 94-tons
Custom, Fast-Deploy Skidder Bridges for Spans up to 17’
Minimize Stream Bank and Bed Disturbance Across Channels and Waterways with Portable Skidder Bridges. Mustang Extreme’s skidder bridges are engineer-rated and fabricated to the highest quality standards. Designed as a more durable and safer alternative to basic timber mat bridges, they can handle low traffic volumes and heavy equipment. These portable, fast deploying, temporary bridges can be easily transported on a standard flatbed truck and skidded into place with excavation equipment and a small crew in one hour.
Our skidder bridges are designed to withstand the rigors of multiple installations. With proper handling, they will last for many years and multiple uses.
Features:
- Engineer-rated
- Tapered ends and heavy towbars for ease of handling, installation, and removal
- Steel frames and additional reinforcing to withstand the rigors of multiple uses
- Capacities: HS25 capacity (45-ton/5-axle tractor-trailer)
- Timber decking preinstalled
- Guardrails (optional) preinstalled
- Bridge sizes and widths can be custom ordered to meet the specific requirements of your site.

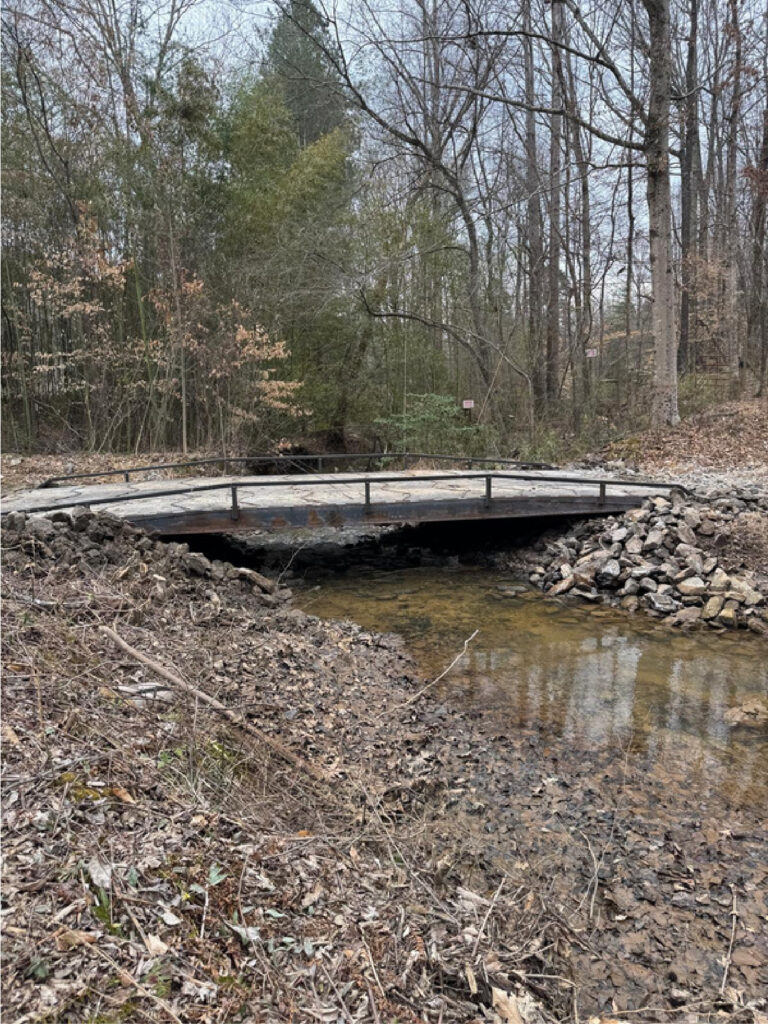

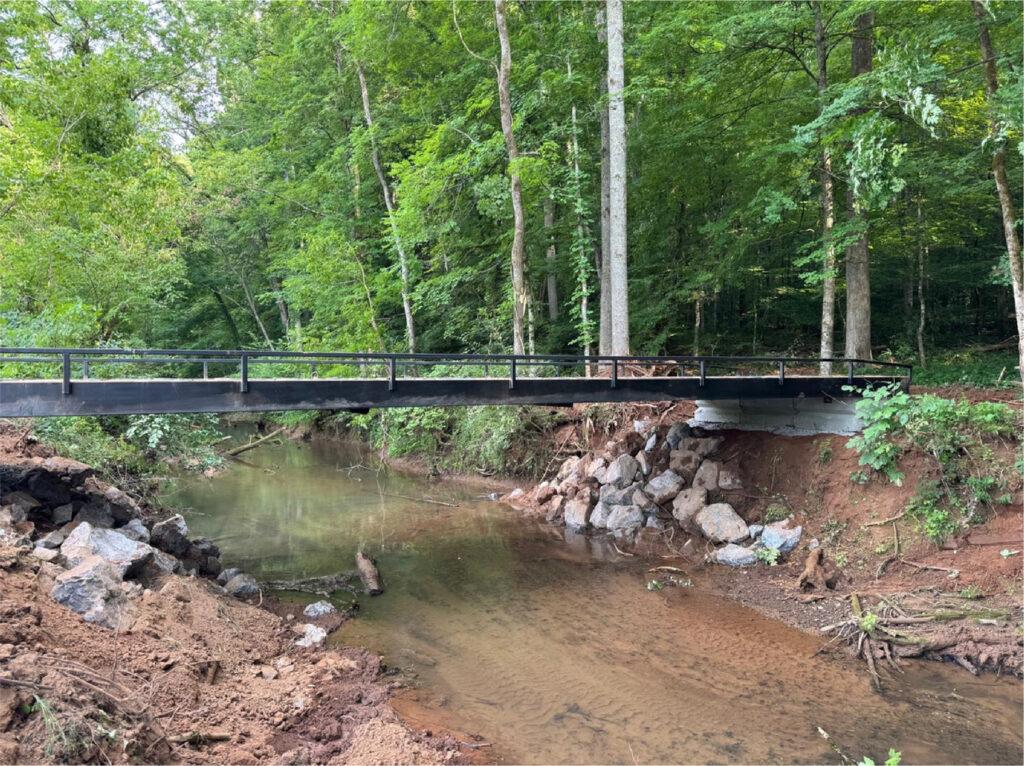

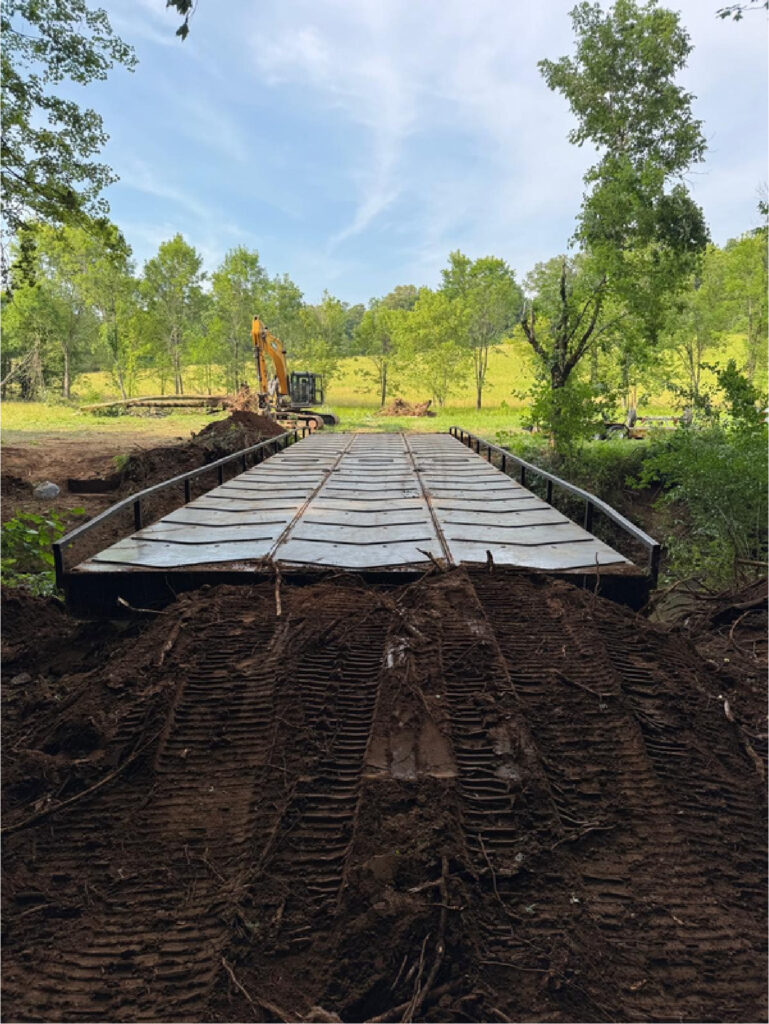

Steel Panel Bridges for Spans up to 60’
Our modular, solid steel bridges are designed for rapid deployment in rugged terrain and hard-to-reach job sites. Built with 4’ wide panels and I-beam construction for easy installation and removal, they can be installed with standard excavation equipment or a crane.
Features:
- Engineer-rated
- Standard lengths from 10’ to 60’
- Engineer-certified to handle heavy equipment
- I-beam construction with reinforced C-channel sides
- Four chain supports on each panel for easy offloading and placement
Permanent Bridges up to 100' Lengths
Mustang Extreme’s permanent bridges are custom built to accommodate crossings over waterways with lengths of 8’ to 100’.
They are ideal for low traffic volume public roads such as township and county roads. Options include paint color, railing style, finishes and decking.
A Mustang Extreme Bridge Specialist can help you determine the custom options that will best meet the requirements of your project.
Features:
- Three-coat paint system
- Inclusion of a waterproofing membrane between the steel stringers and timber deck
- Treated nominal 6” thick timber deck
- Full-dimension vertical steel end plates [“backwalls”] to retain roadway aggregate.
